Mid Rear Frame Section at Bump Stop, (TAC-156U-S) Set

Description

This SafeTCap is designed to repair the Tacoma frame between the rear fuel tank cross member and rear bed mount. Each frame kit measures 35.5 inches in length. The Left side (Driver) comes with the rear fuel tank strap bracket. Hardware not included.  They are fabricated from 11 gauge cold rolled steel, CNC cut and MIG welded by our Certified welders.

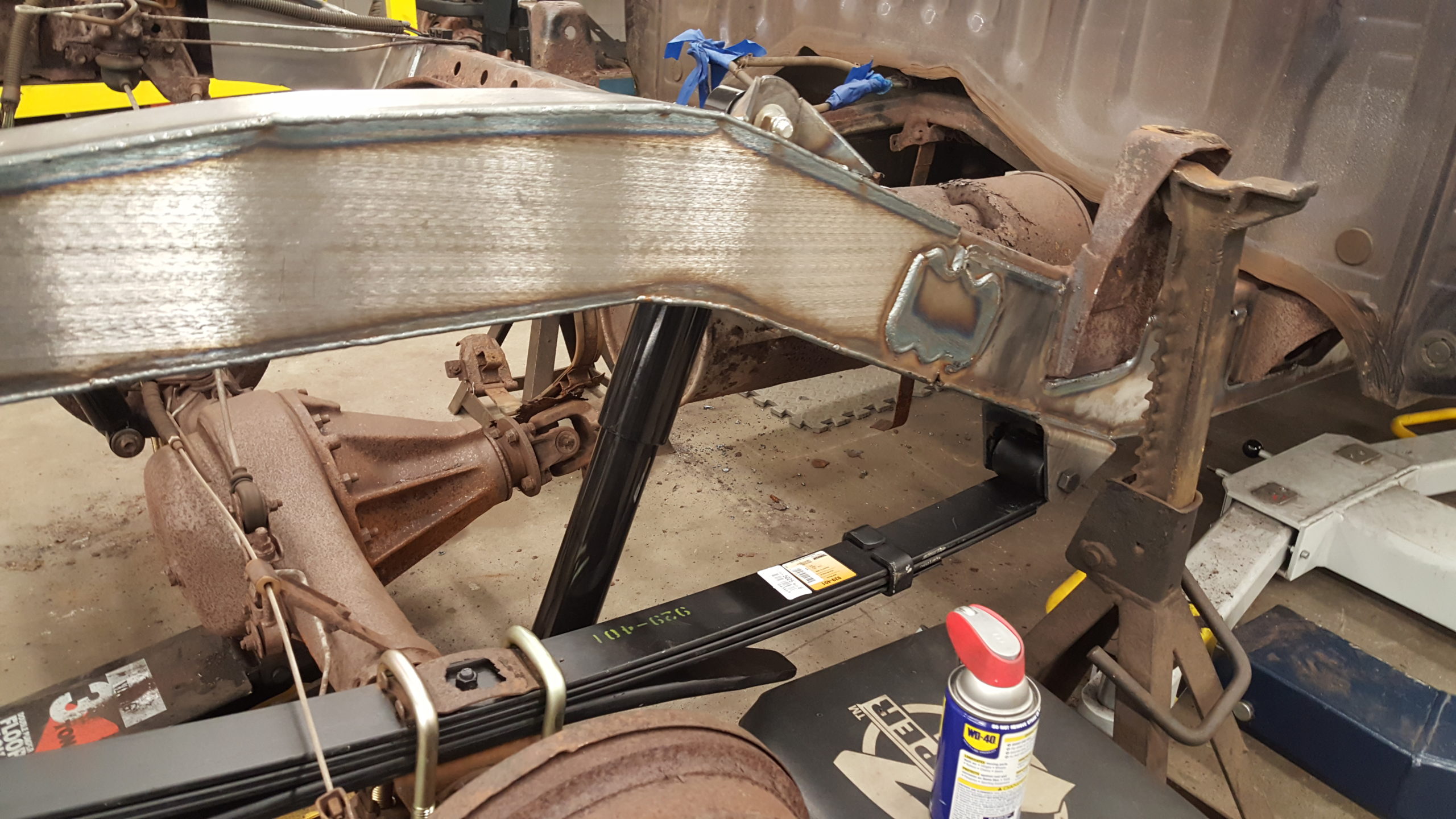

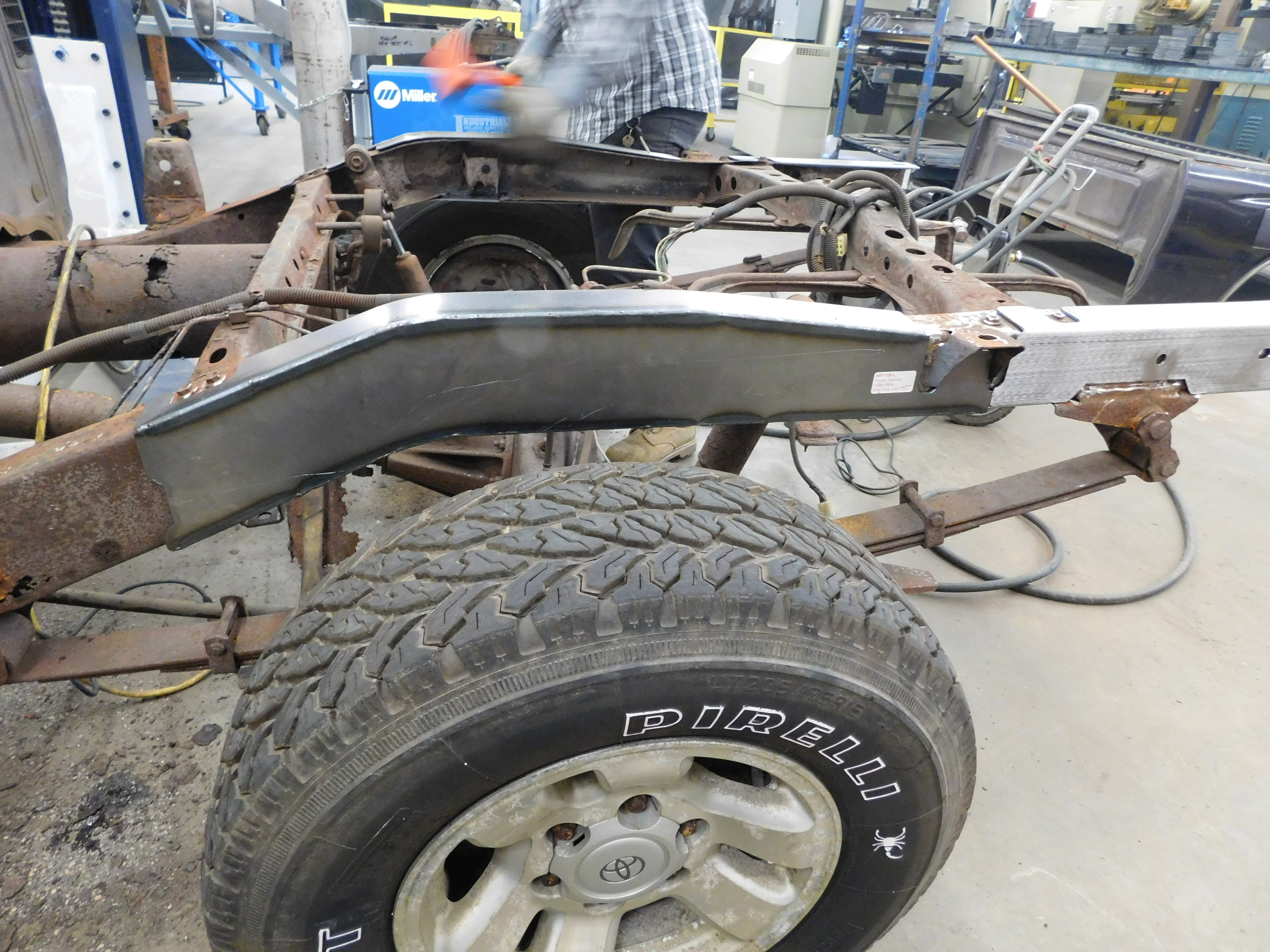

The rear axle bump stop will have to be removed and reinstalled once the part is in place. The bed can be left on when installing this kit.

This part fits all 1996-2004 Tacoma cab models with 2WD and 4WD, including Prerunner.

All SafeTCap® Inc. frame repair kits are DESIGN COPYRIGHTED.
