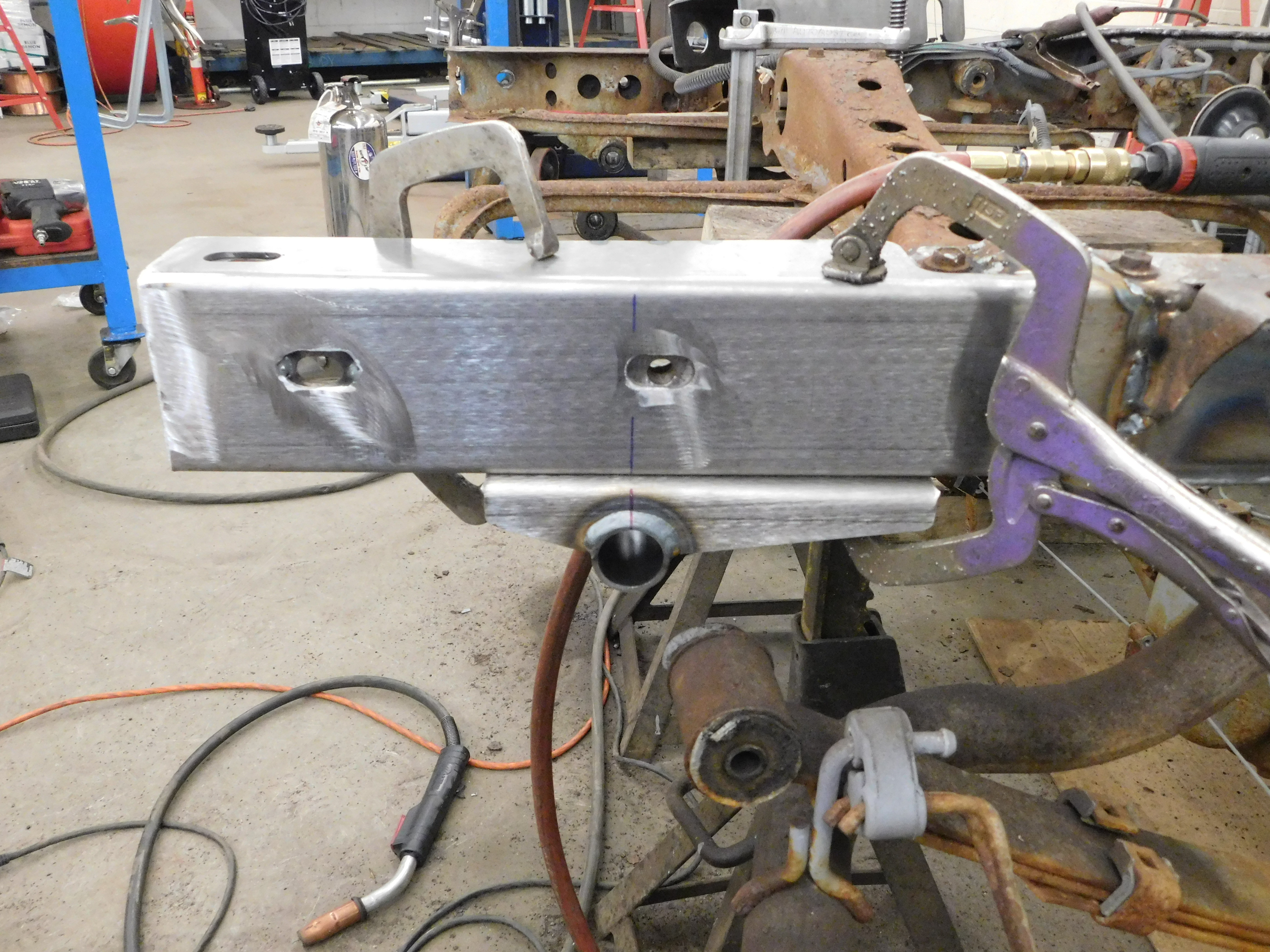

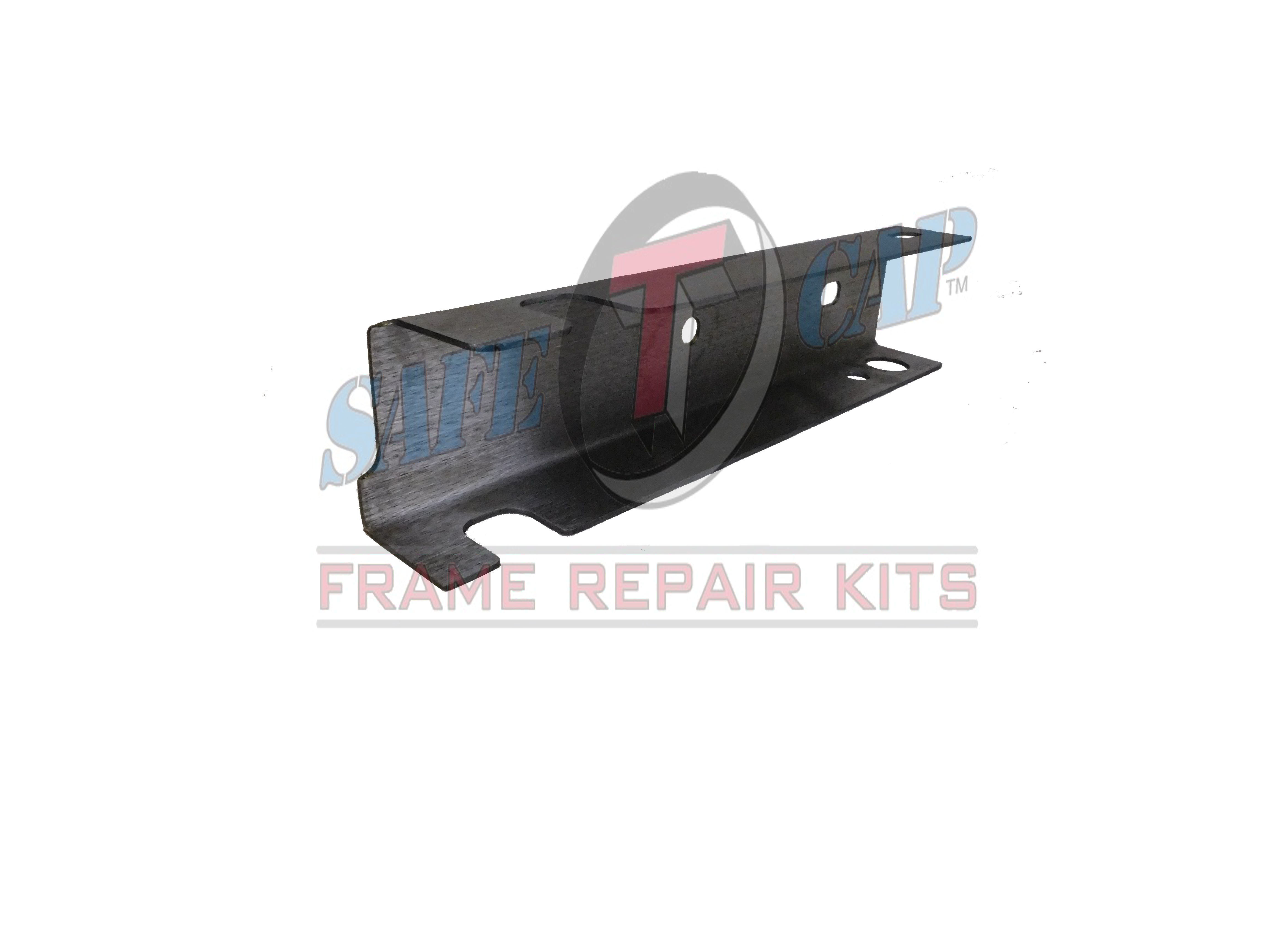

Our TAC-155-2U-R repairs the tail end of the Tacoma frame from the rear bed mount to the rear end of the frame. Unlike the TAC-155, this part is NOT notched around the rear leaf spring shackle mount, therefore the original spring shackle mount will need to be removed from the frame prior to installation. We’ve done this to accommodate installing our new rear leaf spring shackle mount (TAC-164). The rear bumper and mounting brackets will need to be removed before installing this kit, we’ve added slots for the rear bumper bolts for ease of installation. This kit was designed to slip over the original frame and can be installed with the bed left on.
Fits on the passenger side on all 1996-2004 Tacoma cab models, 2WD, 4WD, including Prerunner.
The TAC-155-2 measures 18″ in length, and are precision CNC cut and bent from Domestic, High Quality, 11 gage steel.
If you are in need of the Leaf spring Shackle mount (TAC-164) & the Rear Frame Section (TAC-155-2) we now have a new part that includes both. TAC-180U
All SafeTCap Inc. frame repair kits are designed to be welded in place.
All SafeTCap® Inc. frame repair kits are DESIGN COPYRIGHTED
