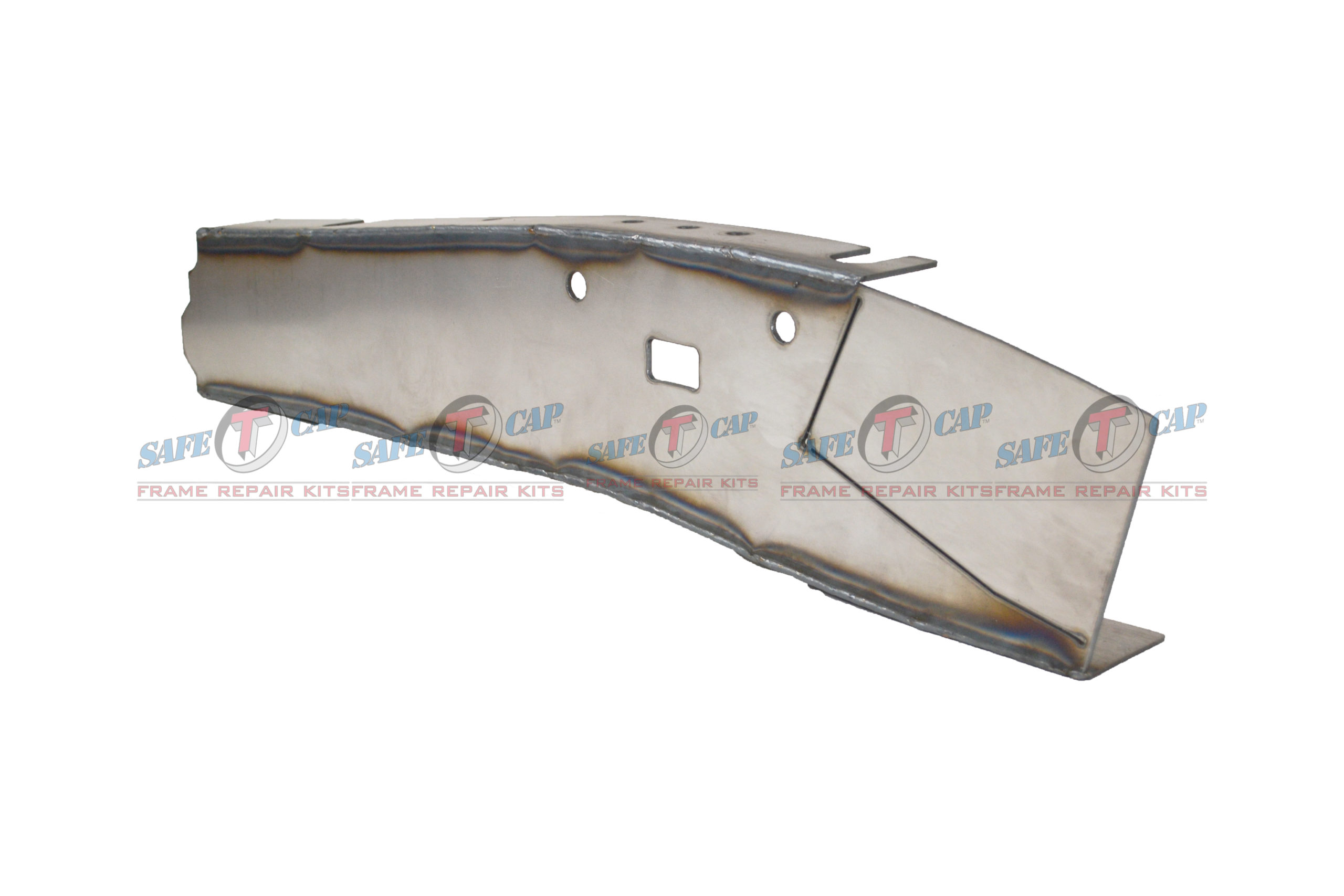

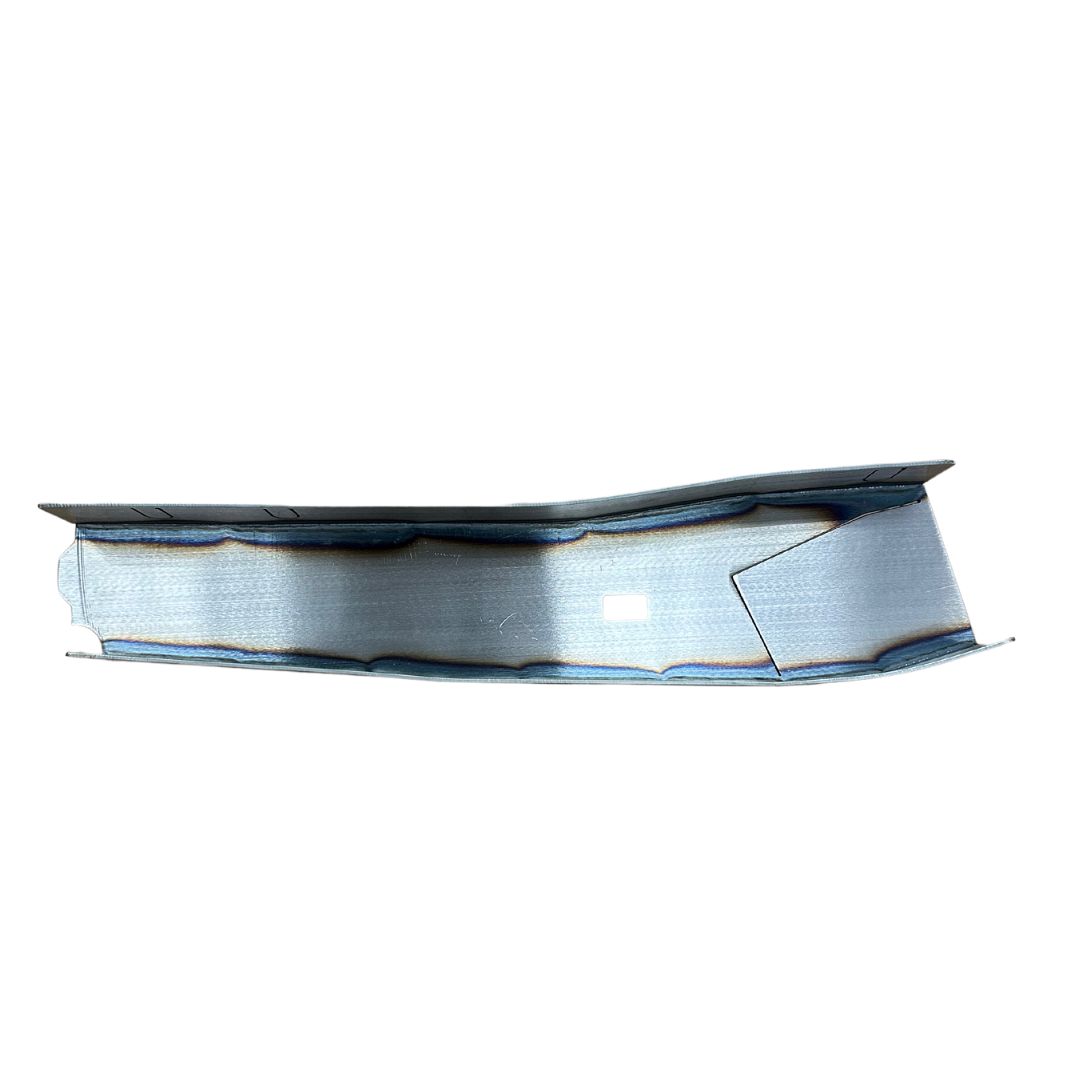

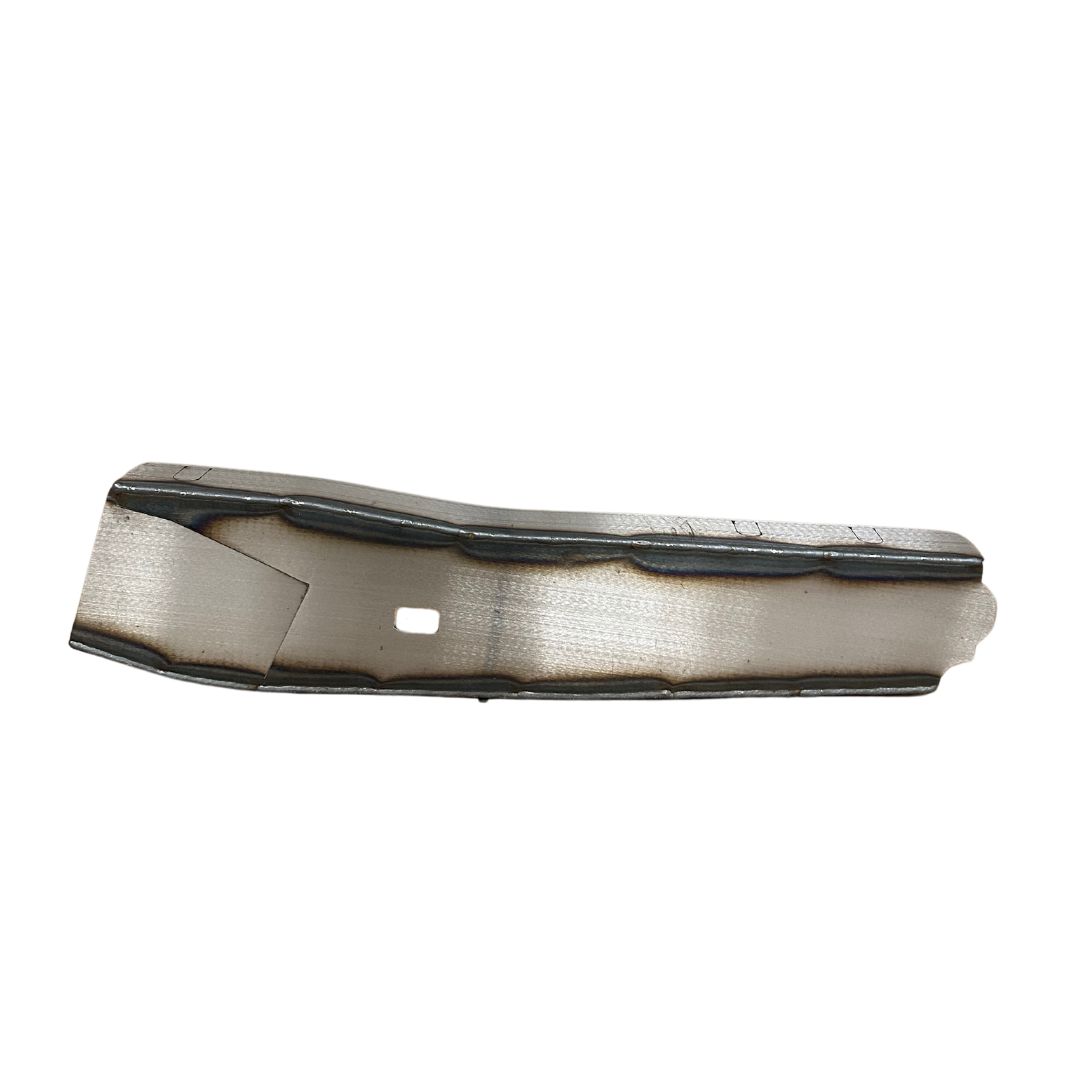

We’ve designed our TAC-233 to cap the frame over the rear axle after removing the bump stop and any rust or corrosion. The TAC-233 caps over the original frame from the outside and is notched to fit right around the driver side upper shock mount, just clamp the frame kit so it fits tightly to the frame, then weld it on.
The TAC-233-R begins at the rear fuel tank cross member and is 26.25″ long, and ends just after the spare tire cross members forward mount to the frame. You will need to remove the bump stop mount from your frame before your able to install this frame kit.
Our TAC-233 is made from only American 11ga steel and is CNC cut and assembled by our AWS certified welders.
We Make the Kits, That Fit!
