Front Frame Section (TAC-230R/A-S) Set Auto Trans

Description

Front Frame Section (TAC-230R/A) Reg Cab / Automatic Transmission

   The TAC-230R/A fits the 2005-2015 2nd Gen Toyota Tacoma Reg Cab Automatic Transmission ONLY!

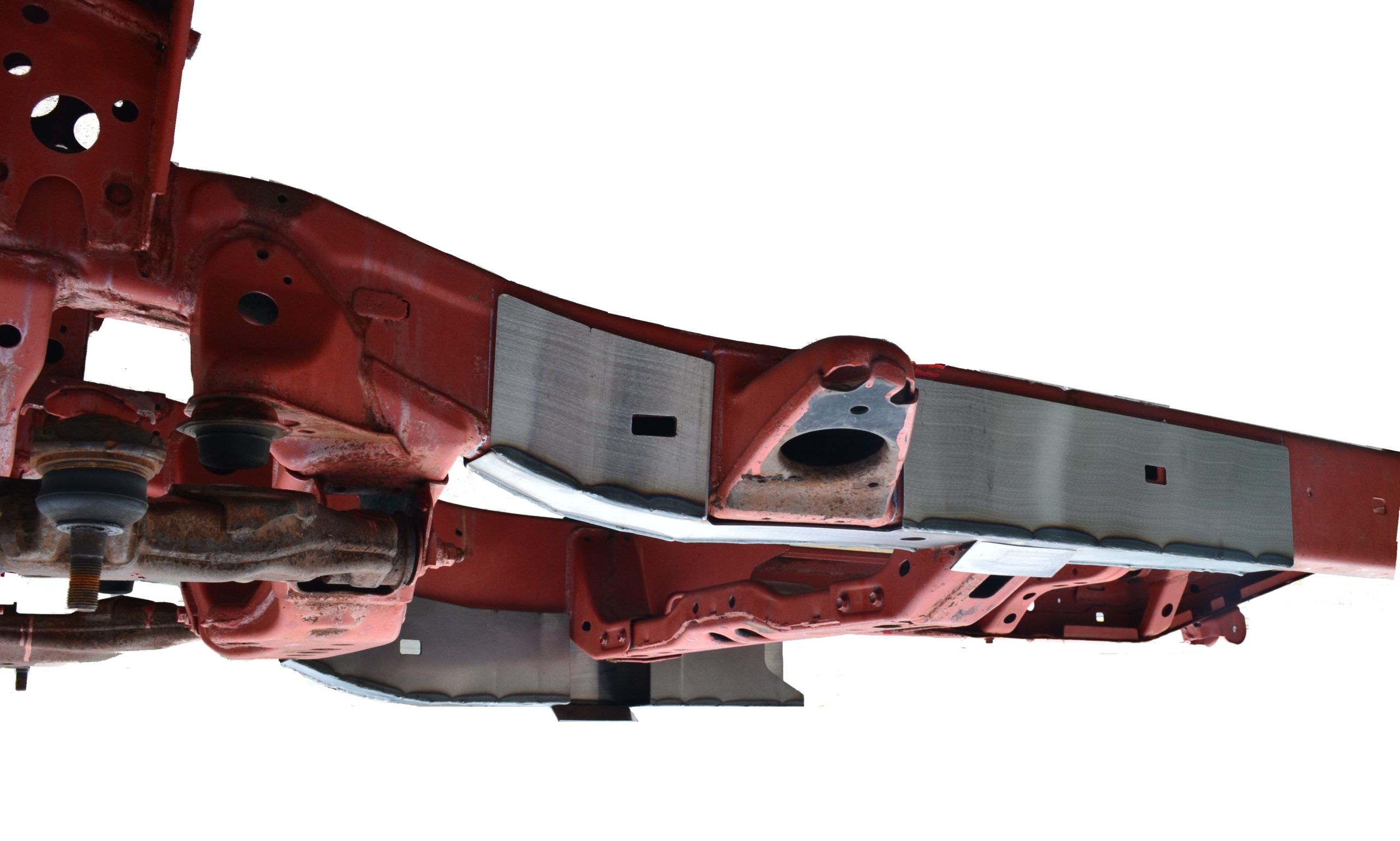

  The TAC-230R/A will cap the frame beginning right after the control arm crossmember, or 8″ inches before the front cab mount, and will end approximately 11.5″ after the transmission cross member, right where the frame transitions from a boxed style frame to a C-channel style frame. The TAC-230R/A is 6″ inches tall and once installed will need to be welded to the upper part of the original frame after the rust is removed and remaining metal is cleaned to bare metal. The TAC-230R/A also have drainage holes designed into them to allow any moisture or debris to drain out of the frame preventing a repeat problem.

TAC-230R/A-Set comes with both Driver and Passenger sides as well as installation instructions.

Please Note: If you have a 2WD Regular Cab w/Manual Transmission, use the TAC-230R/A version.

Please Note: If you have a 4WD Regular Cab w/Manual Transmission, use the TAC-230X/D version.
