Our SafeTCap® ART-150-1 was designed to fit the 2005 Chevy Silverado 1500/GMC Sierra 1500 only.

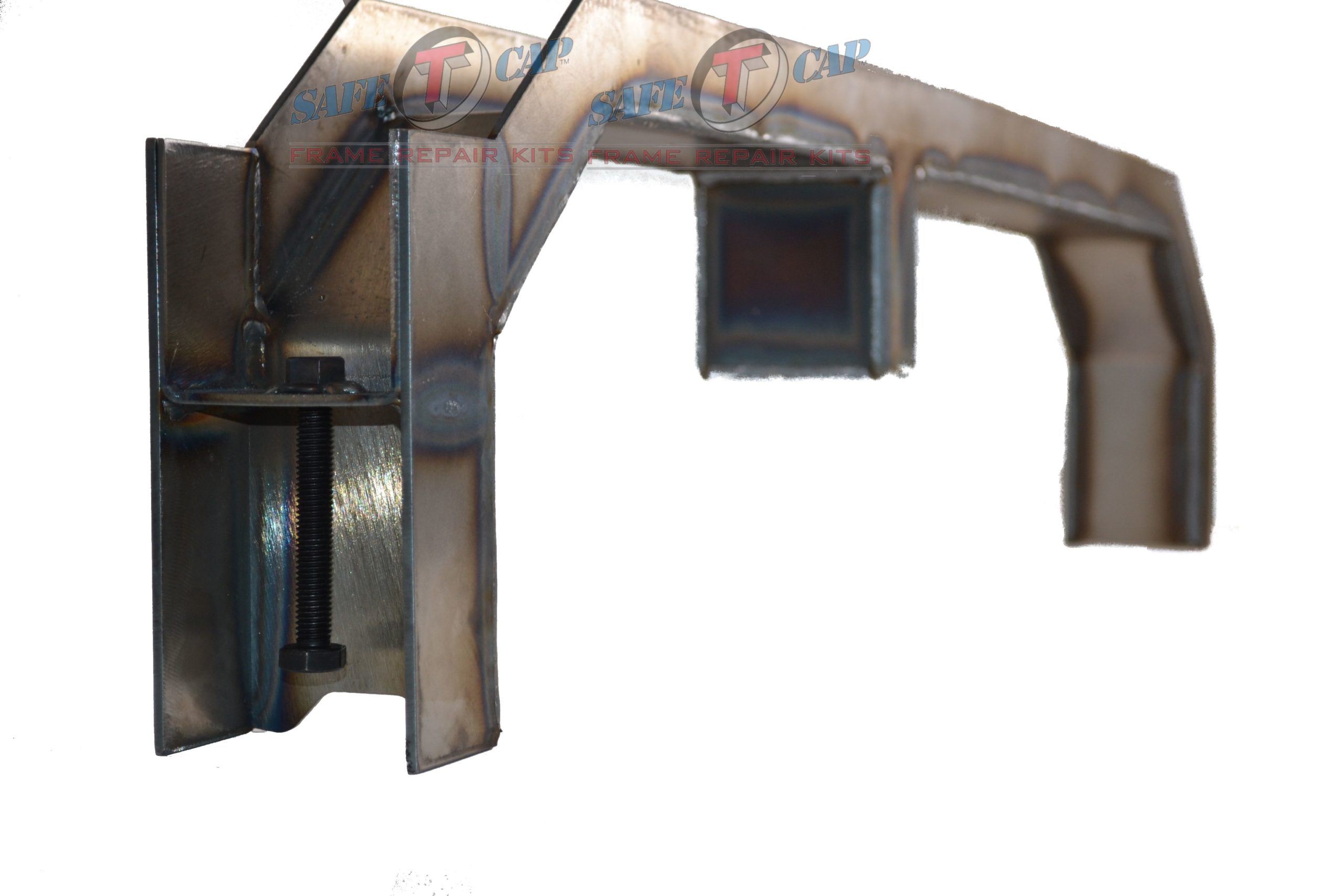

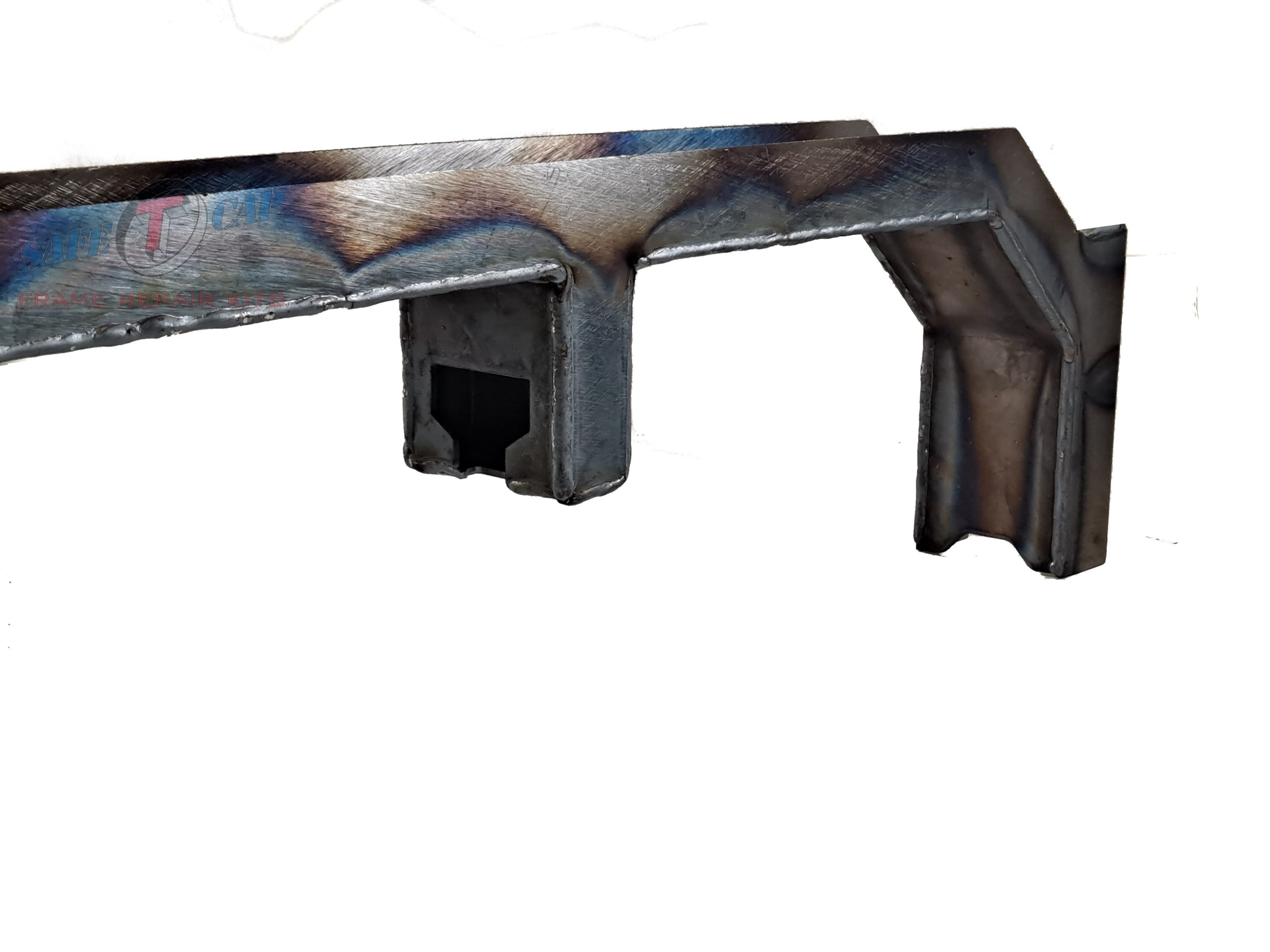

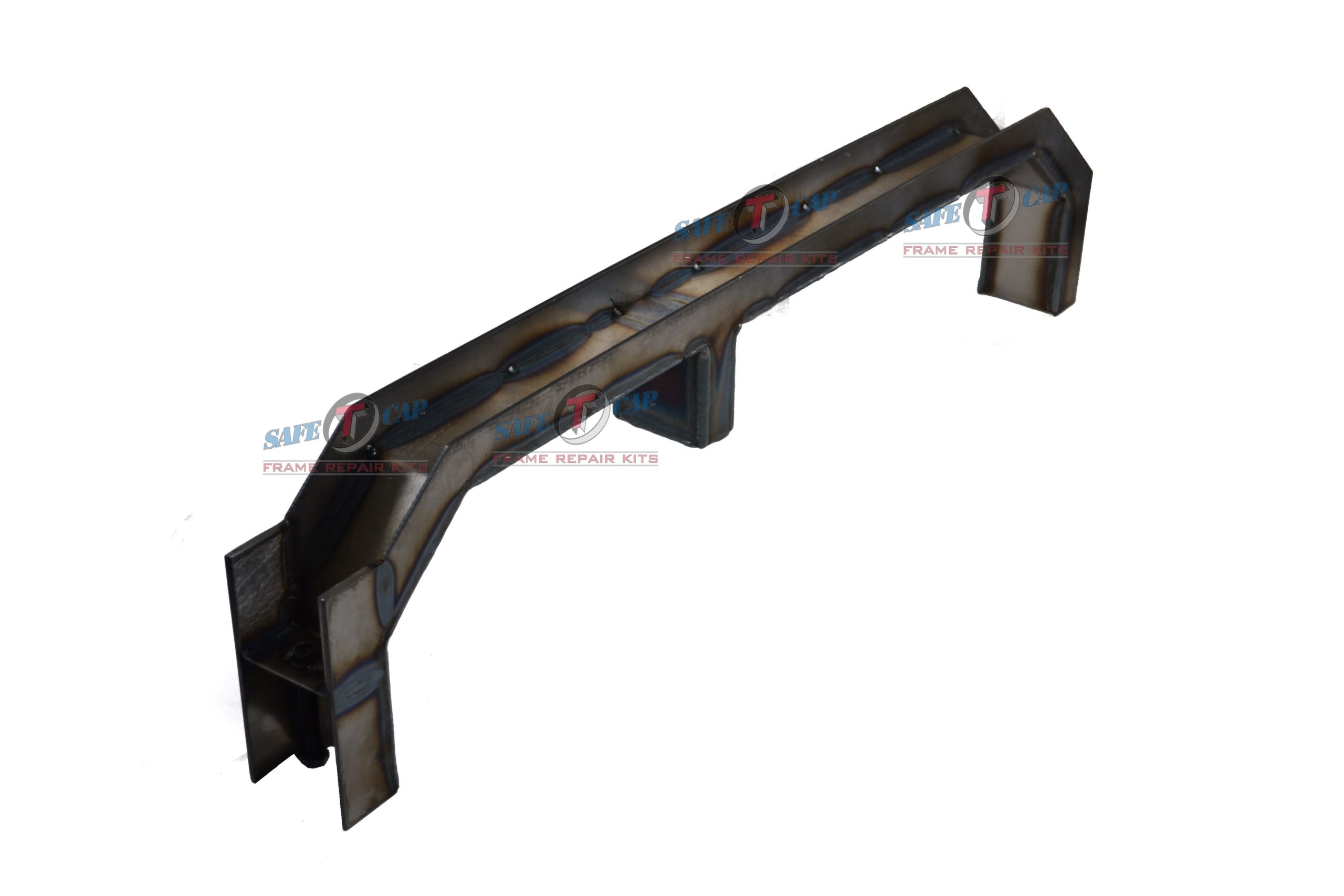

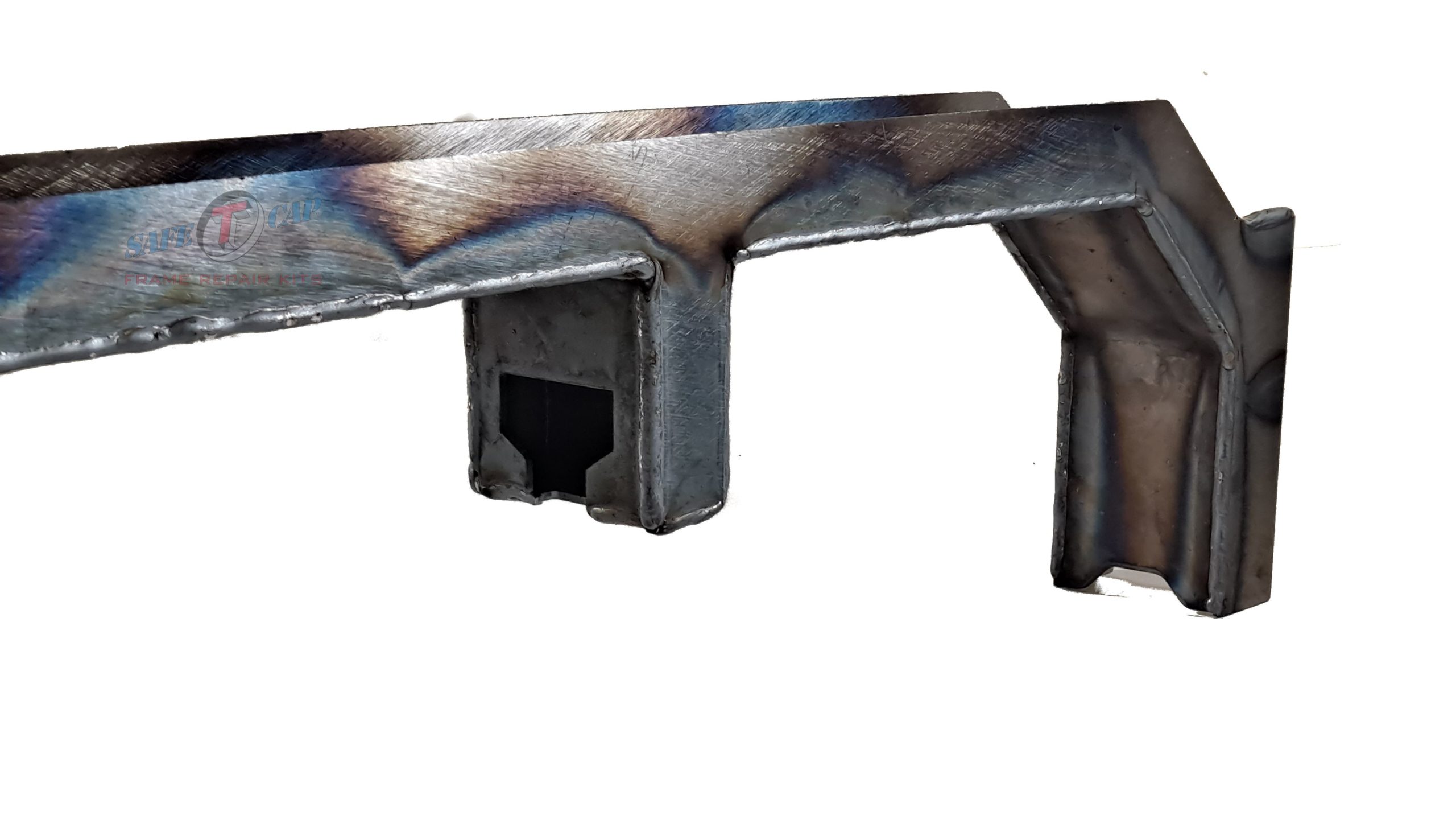

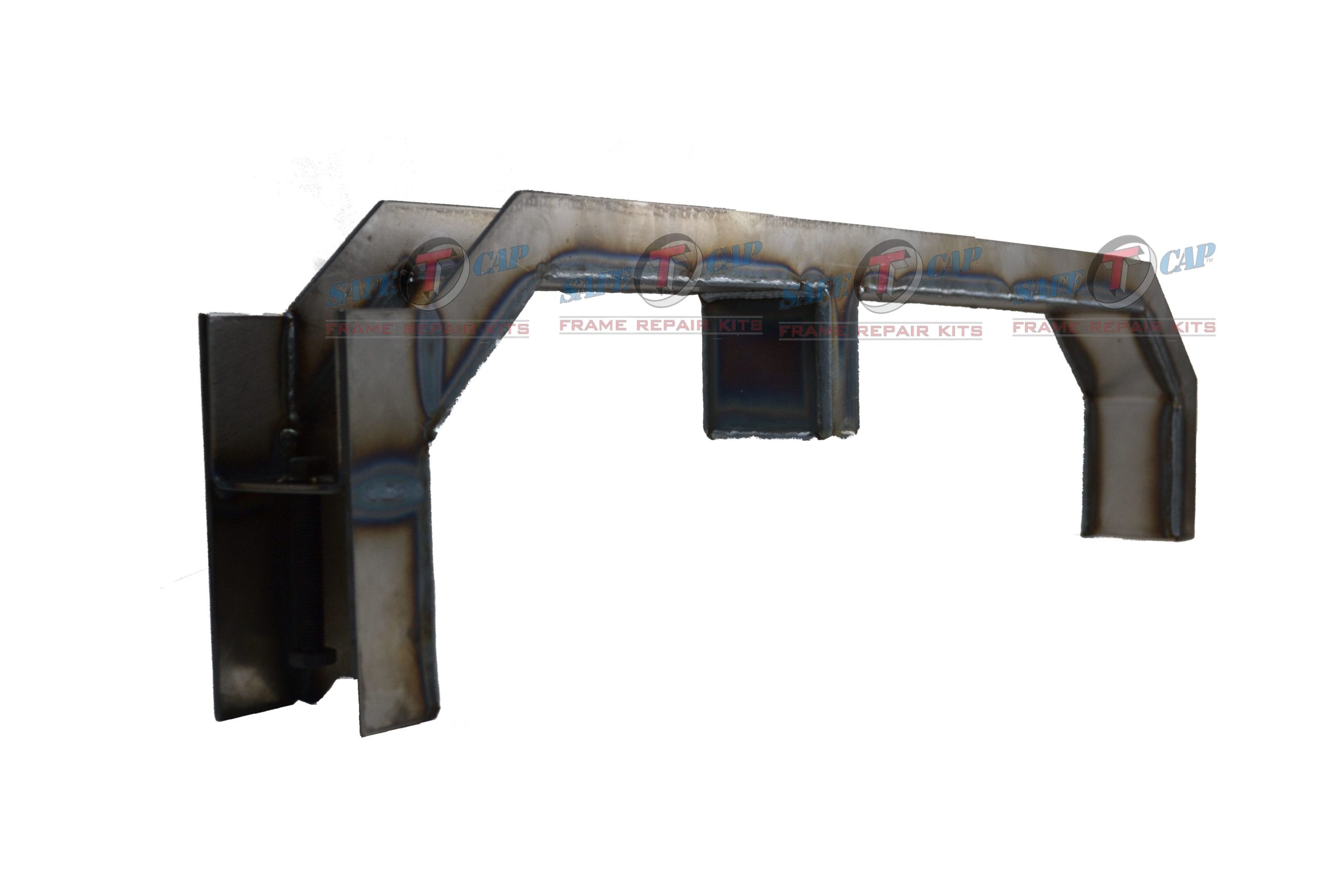

Our ART-150-1 is an OEM spec, direct weld-in replacement for the forward fuel tank cross member. Its made from only quality, American produced 11ga steel, and is CNC cut, formed and assembled, using precise fixtures, by our skilled AWS Certified Welders in Cranston, RI, USA. The original cross member must be cut from the top of the left and right frame rails, the frame ground to clean metal then welded. The ART-150-1 comes with a built-in fuel tank strap mounting bracket in the center and new 10mm-1.5 gr 10.9 HCS and weld nut for mounting your fuel tank and fuel tank strap.
NOTE: The ART-150-1 DOES NOT come with new fuel tank straps, please contact your local Auto parts store to purchase new fuel tank straps if needed.
Installation Instructions provided with each SafeTCap® Frame repair kit purchased. And each SafeTCap® Frame repair kit comes with a manufacturer warranty.
The ART-150-1 was designed to be installed without having to remove the truck bed or cab, only the fuel tank needs to be removed after draining the fuel.
